FORGE AND BOND, 30 EM CARBON | PROJECT 321 HUBS | WHEELSET
FORGE AND BOND, 30 EM CARBON | PROJECT 321 HUBS | WHEELSET
Regular price
$1,500.00 AUD
Regular price
Sale price
$1,500.00 AUD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Description
RUN OUT SALE-NO RIM WARRANTY (see Note on CSS Composites)
We have a few wheel sets and also rims we can assemble, so contact us urgently if yo want to snag this great deal. As mentioned we will offer you a special warranty option so contact us!
29" WHEELSET (FRONT AND REAR): FORGE and BOND (F+B), P321 Hubs
- Made with FUSIONFIBER® Carbon Fiber
- 29" FONT AND REA RIMS, 32H Rear, 28H Front Rims
- 30mm internal rim width optimized for aggressive DH and Enduro riding
- Hookless bead for easy setup
- J bend Sapim RACE SPOKES, Double Butted Spokes
- Tubeless ready complete with rim tape, valve stems, and easy seating with hookless bead design
- No rider weight limit
-
NO WARRANTY as CSS Composites has entered insolvancy, these rims no longer have lifetime waranty. Normally all Forge & Bond wheels came with our Return to Fun lifetime warranty and crash replacement. But we wish to ensure our customers are not left high and dry, so...
- INNOEVO CRAFTWORX is offering a special price for these wheels.
- Should you break them, well get you onto the Wingman Prodigy Carbons for a special price, limited for these wheel sets only (customer registration).

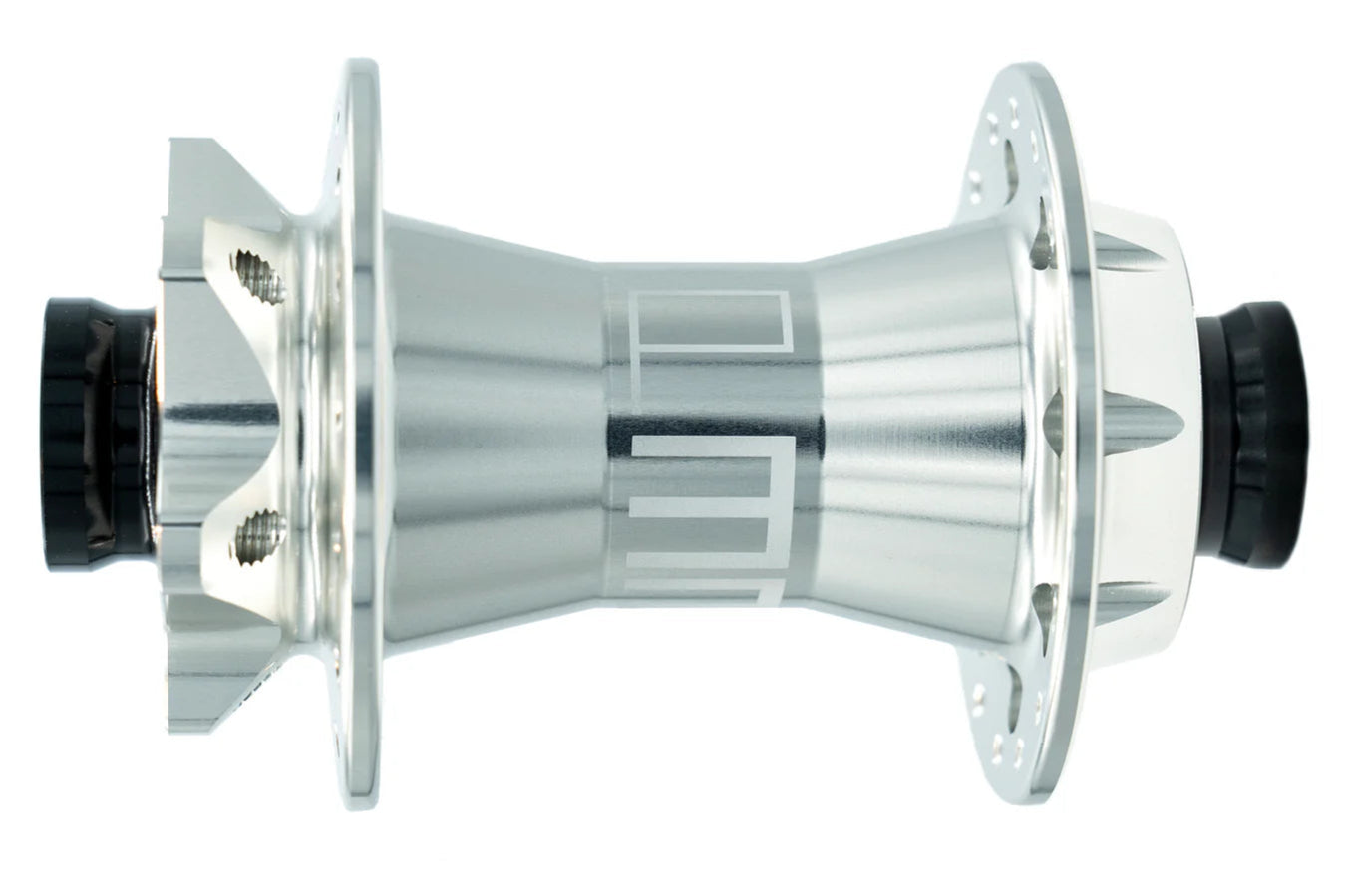

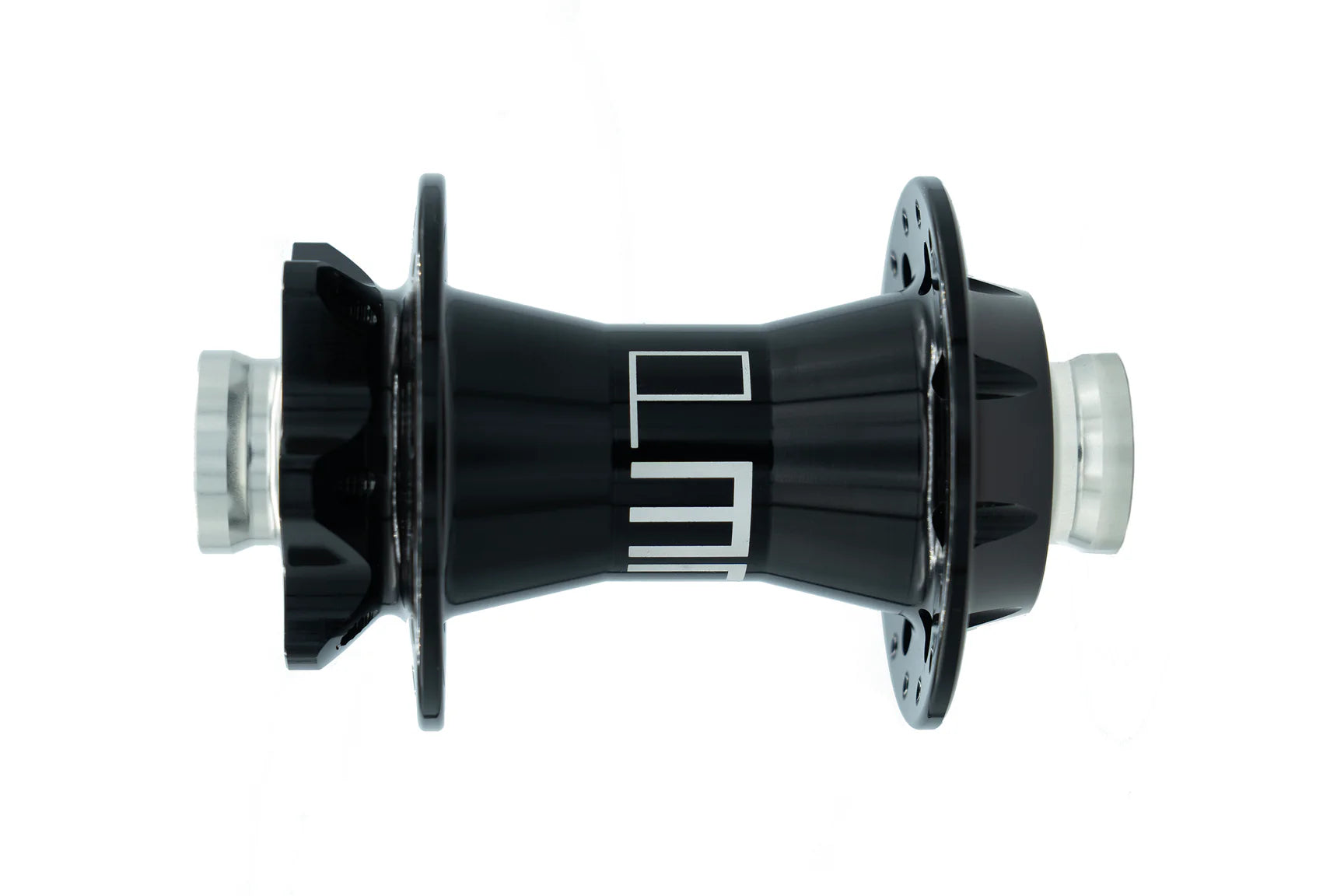

HUBS: PROJECT 321
- PROJECT 321 HUBS (BLACK, SILVER with Cobolt Blue End Caps) also full custom options for wheel builds
- Front Hub 110x15[mm] with 28H/32H for rim only options
- REAR Hub 148x12[mm], 32H, Hyperglide (HG) or XDR (XD) freewheel
- A hub with proven durability, backed by a 10 year axle warranty
- Fully e-bike compatible
SPOKES: SAPIM RACE
- Sapim J-Bend Race Spoke
- Custom bUilds have spoke options to select
- Tubeless ready complete with rim tape, valve stems, and easy seating with hookless bead design
Technical Details
Built For: All Mountain, Enduro, DH Wheelsets
Tyre Size Range: 2.3" - 2.6"
Max Tyre Pressure: 40 psi Max
ERD: 594mm (29"), 556mm (27.5")
Rim Outer Width: 38mm
Rim Inner Width: 30mm
Rim Depth: 22mm
Beadwall Thickness: 4mm
Spoke Count: 32/28 (29") / 32 (27.5")
Rim Weight: 480g (27.5"), 530g (29")
Wheelset Weights:
Front Wheel: 29", 110x20 and 27.5", 110x20, 32H, P321 Boost, 6B: 890/840 [g]
Front Wheel: 29", 110x15, 32H, P321 Boost, 6B/CL: 870 [g]
Front Wheel: 27.5" 110x15, 32H P321 Boost, 6B/CL: 820 [g]
