NOTE: Colour Hubs have matching 6-Lock Rotor colour and black End Caps

The Foundation for Strong Wheels

Optimized hub geometry to balance spoke tension
Angled flanges create a more direct path for spoke and nipple
Tall flanges maximize torsional stiffness
7075-T6 Aluminium
312[g] with 6-Lock flange, 292[g] as CentrelocK

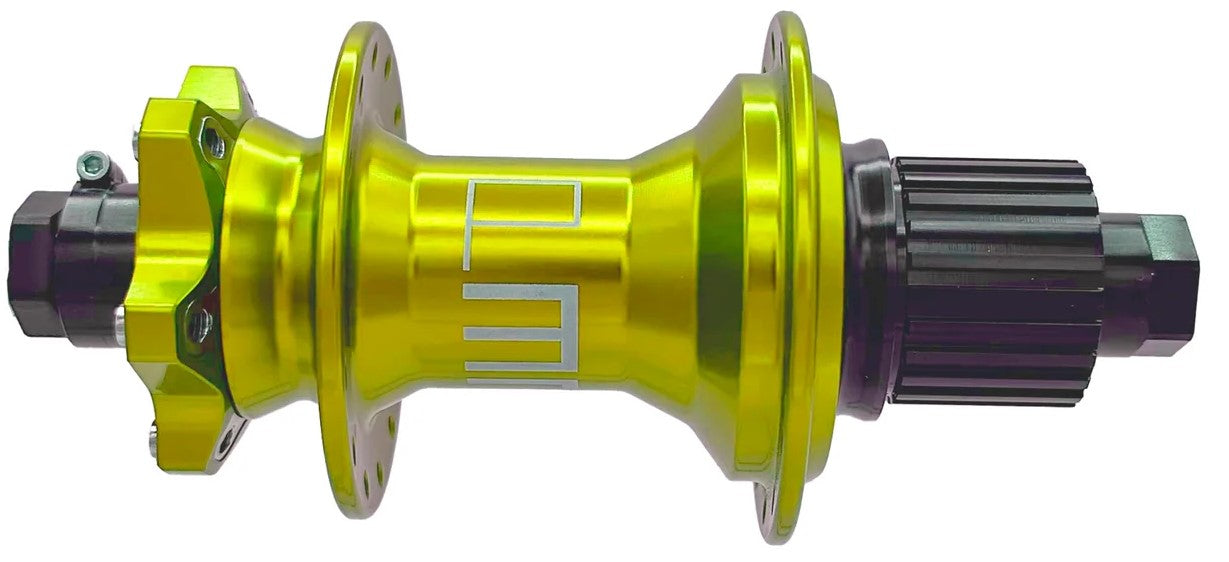

The G3 hub shell is machined from 7075-T6 Aluminium the ideal foundation for incredibly stiff, responsive, and reliable wheels

Features:

Instant, Rock-Solid Engagement

1.25° / 288 Points of Engagement (POE)
Eight 3-step pawls phased in teams of two
72-tooth drive ring with oversized teeth

Updated Axle and Bearing Layout

Two double row bearings at the highest stress point on the axle
Fine pitch preload adjustment on rear hub
Fully anodized 7075 aluminum axles

Our redesigned axel and bearing assembly delivers long lasting, smooth rolling performance under the most abusive riders, powerful quads, and demanding e-bike motors.

Magnetic Glide Technology

Magnetically actuated pawls minimize drag while coasting, Fewer moving parts, No easy-to-lose springs, Less drag. Less maintenance.

6-Lock Technology

6-Lock is an innovative new brake flange that gives you both true 6-bolt and center-lock fitment in one hub.

Drive Ring Seal System

New low-drag, light-contact rubber seal, Aluminum dust shield, Improved two piece seal system keeps oil in and contaminants out.

Maximizing Compatibility

Easily interchangeable drivers offered in HG, XD, and MicroSpline (compatible with HGR and XDR)
Universal end cap and bearing configuration across all drivers and axle sizes
Interchangeable 12mm and 15mm front end caps
G3 hubs are designed to make drive train and endcap conversions simple and straight forward
